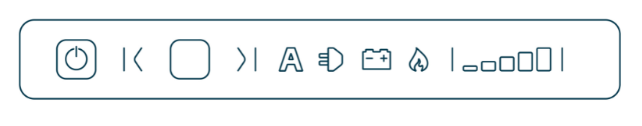

There is a bar with symbols on your absorption refrigerator in your Carado vehicle (see picture below). But what is it for?
Here you will find an explanation of what these symbols mean and what you can set with them:
- On/off switch: Switch the refrigerator on/off at the touch of a button.
- Navigation buttons: The arrow buttons allow you to navigate left or right through the menu. The selection can be confirmed with the centre button. The current position in the menu is indicated by an indicator and, after confirmation, the selection is permanently lit.
- Automatic mode (A): The refrigerator automatically selects the best energy source (230 V, gas or 12 V).
- 230 volt mode (power plug): Operation via external power source.
- 12-volt mode (battery): Operation via vehicle's on-board battery.
- Gas mode (flame): Operation with gas, without electrical energy source.
- Power levels (1-5): Individual adjustment of the cooling capacity.
You can find all further information about refrigerators and the different refrigerator variants at Carado on the following page: Refrigerator. In our explanatory videos you will find more information on how to use your refrigerator optimally.
